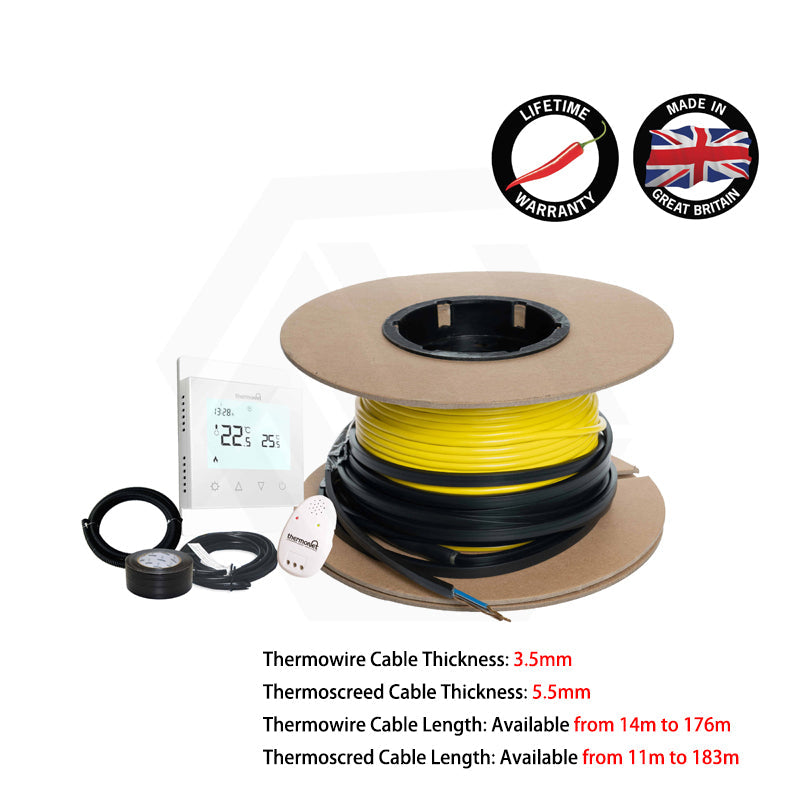

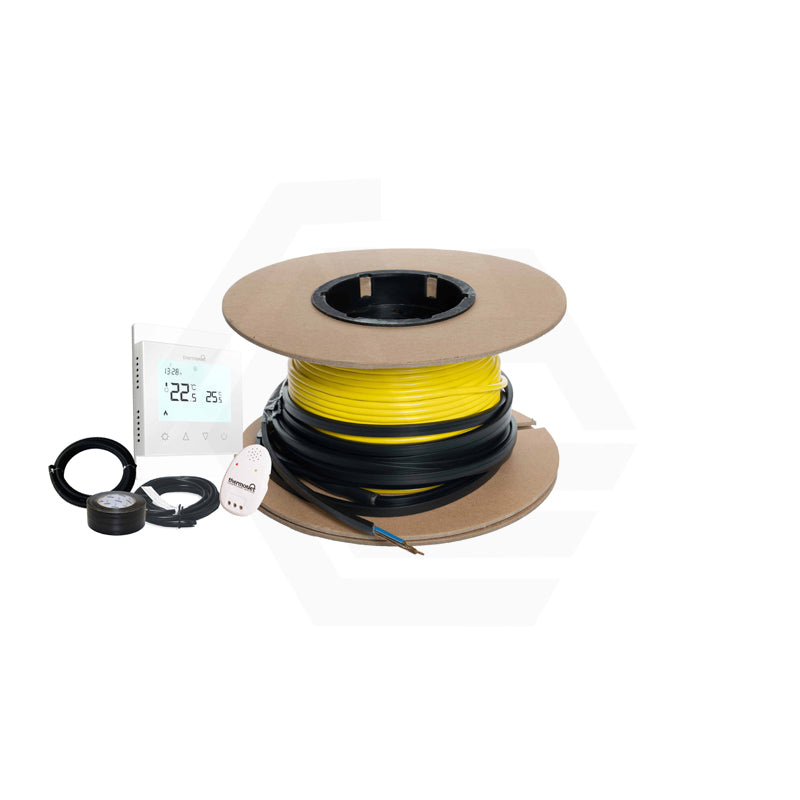

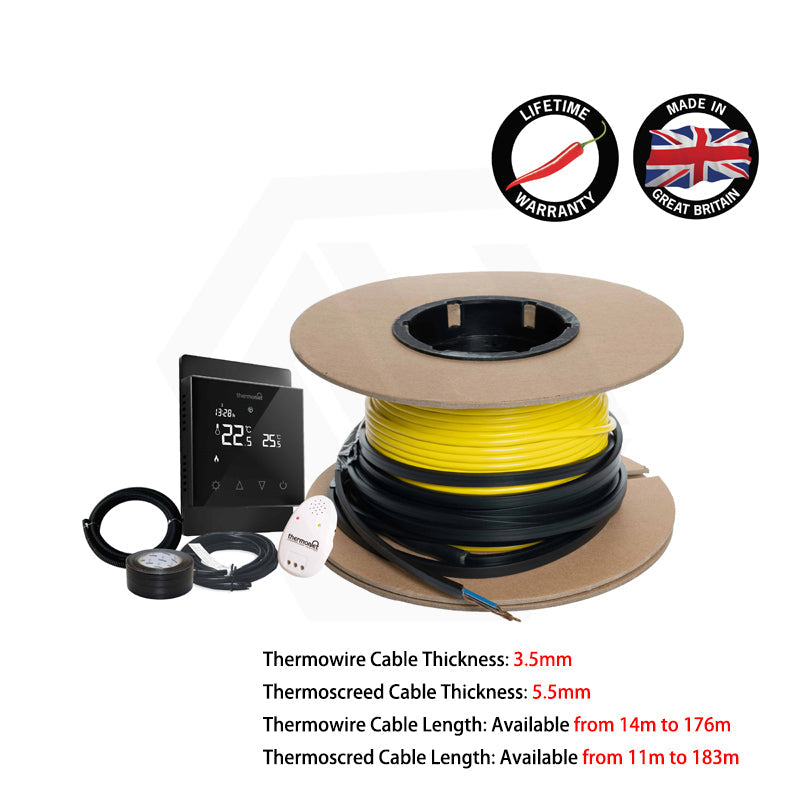

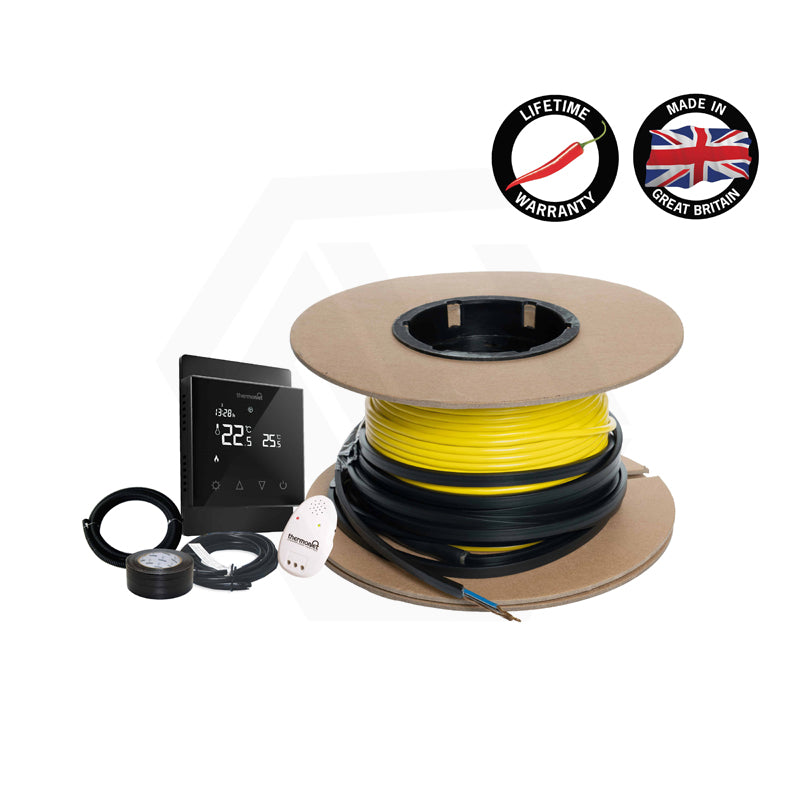

ThermoGroup Thermowire/Thermoscreed Undertile/In Screed Floor Heating Kit with White/Black Glass Thermostat

Discover tailored warmth with the ThermoGroup Floor Heating Kit, featuring your choice of flexible Thermowire for undertile installations in larger areas like living rooms or robust Thermoscreed for in-screed systems in spaces requiring maximum heat output. This versatile solution accommodates spaces of all sizes with cable lengths available from 11m to 183m, while the sleek 3.5mm (Thermowire) and 5.5mm (Thermoscreed) profiles ensure minimal impact on floor levels. Complete with an elegant white or black glass thermostat, the system provides both precise temperature management and sophisticated style for any interior.

Engineered for reliability and safety, the heating system maintains a comfortable maximum surface temperature of 28°C and features a completely waterproof IP68 rating for guaranteed protection in wet areas. The dual-purpose thermostat offers convenient control for your underfloor heating alongside compatible accessories like heated towel rails. Experience the perfect balance of customized comfort and enduring performance that transforms your living space into a sanctuary of warmth.

Underfloor Heating Calculator

Note:

• • The thermostat supports up to 16 amps. If your system exceeds this, you’ll need a compatible contactor and snubber. Not sure which one to choose? Simply send us your floor plan, and our team will be happy to assist.
• • Select the corresponding number of insulation board based on your thermonet size and coverage.

• • NEVER CUT THE HEATING CABLE!

Specification:

• - Kit items include: Thermowire/Thermoscreed Cable, Cloth Tape, Programmable Thermostat (5220A/5226A), Floor Temperature Sensor, Sensor Conduit, Cable Monitor (6025), Installation Guide & Warranty Form.

• - Thermowire:

• - Thermoscreed:

Technical Data:

Thermowire (Ideal for Living Rooms)/ Thermoscreed (Ideal for Bathrooms)

• • Cable Thickness: Thermowire-3.5mm / Thermoscreed-5.5mm
• • Max Temperature: 28°C
• • Protection Rating: Thermowire-IP68 / Thermoscreed-IP67

• • Thermoscreed Voltage: 240Volt
• • Thermoscreed Wattage: 18W/lm
• • Conductor Type: Singled Ended
• • Cold tail length: Thermowire-5m / Thermoscreed-3m
• • Lifetime Warranty on heating cable and 3 years on the Thermostat
• • 6mm/10mm Thick Coated or Uncoated Insulation Board Available
