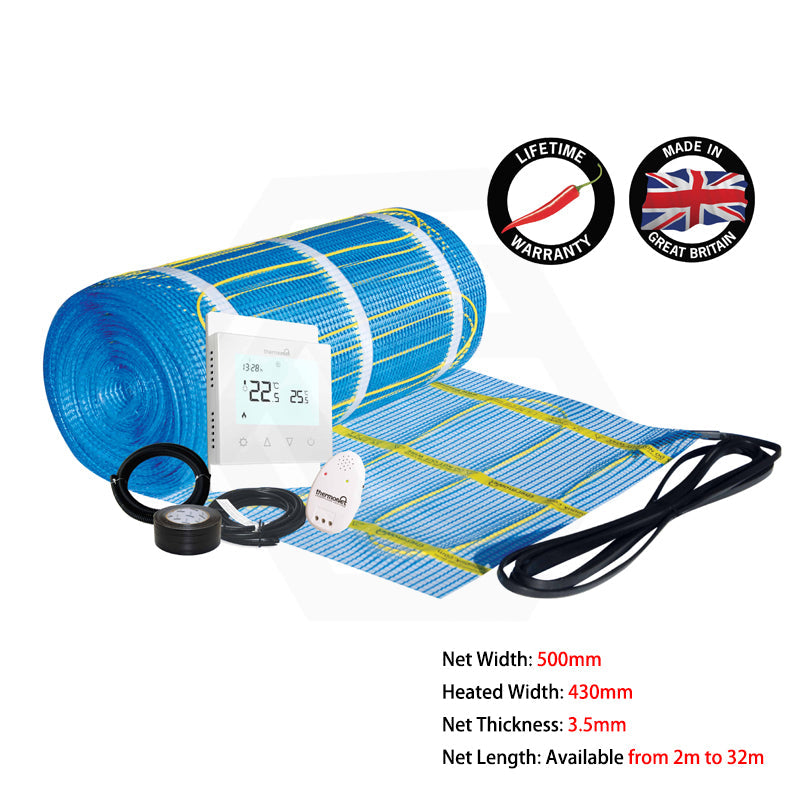

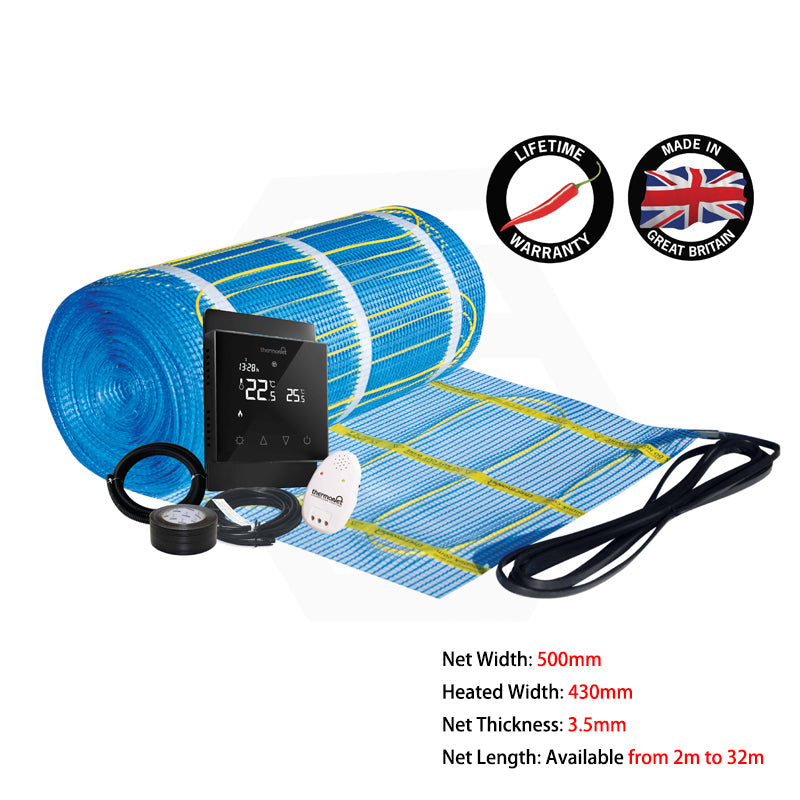

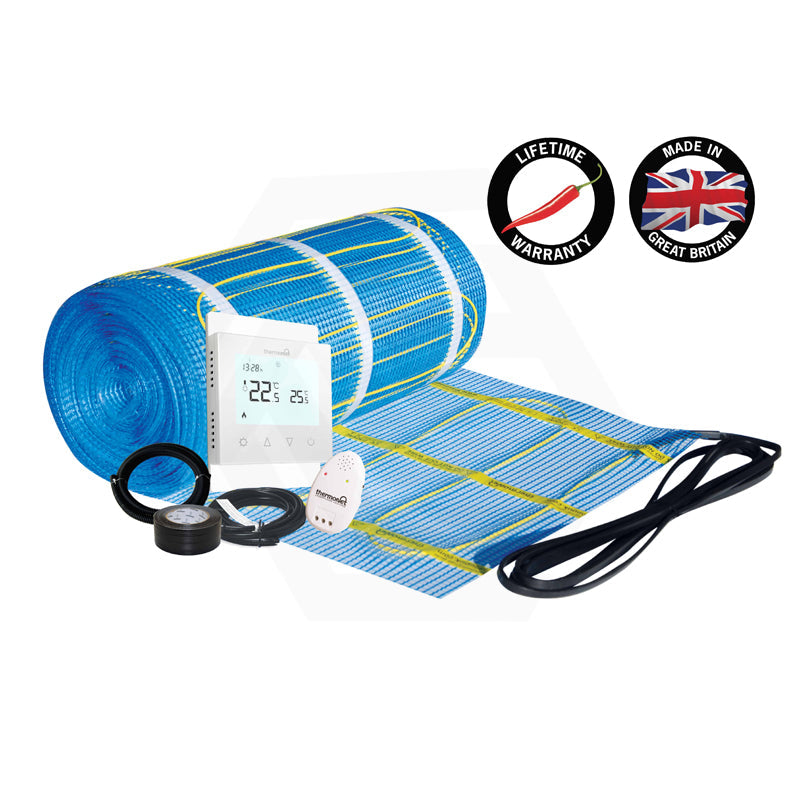

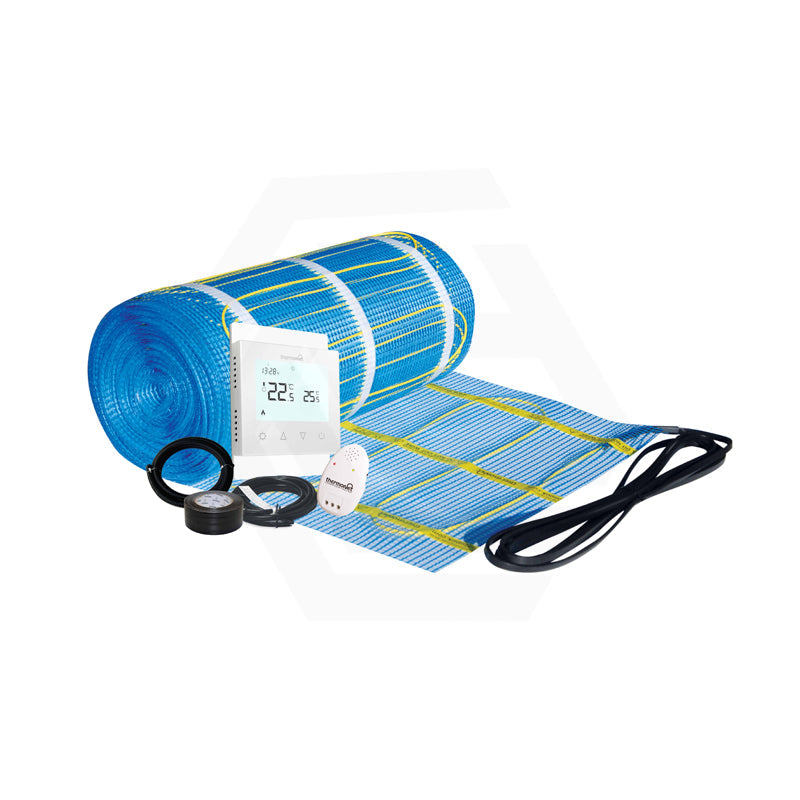

ThermoGroup Thermonet 150-200W/m² Undertile/In Screed Floor Heating Kit with White/Black Glass Thermostat

The ThermoGroup Thermonet Floor Heating Kit offers a versatile and efficient underfloor heating solution, allowing you to choose between 150W/m² for undertile systems, ideal for large tiled areas like living rooms, or 200W/m² for in screed systems, perfect for spaces requiring intense heat like bathrooms, to match your specific project needs. With an array of heating mat sizes available, it provides flexibility for various room dimensions, while its slim 3.5mm thickness, 500mm width, and 430mm heated width ensure easy integration without compromising floor space.

The kit includes a thermostat in white or black, mountable in portrait or landscape orientation, and features a maximum temperature of 28°C with an IP68 rating for safe, durable, and moisture-resistant performance. Embrace a cozy and energy-efficient home environment with the reliable ThermoGroup Thermonet Floor Heating Kit.

Underfloor Heating Calculator

Note:

• • The thermostat supports up to 16 amps. If your system exceeds this, you’ll need a compatible contactor and snubber. Not sure which one to choose? Simply send us your floor plan, and our team will be happy to assist.
• • Select the corresponding number of insulation board based on your thermonet size and coverage.

• • NEVER CUT THE HEATING CABLE!

Specification:

• - The Thermonet matting is available in a kit which includes all the items (except insulation) that you will require for installation of your underfloor heating. Kit items include:  Thermonet Mat, Programmable Thermostat (5220A/5226A), Floor Temperature Sensor, Sensor Conduit, Fixing Tape, Cable Monitor (6025) & Installation Guide & Warranty Form.

• - 150W Thermonet:

• - 200W Thermonet:

Technical Data:

• • Width: 500mm
• • Heated width: 430mm
• • Thickness: 3.5mm
• • Max.Temprature: 28℃
• • Protection Rating: IP68
• • Voltage: 240V
• • Wattage: 150W/m² (Ideal for Living Rooms), 200W/m² (Ideal for Bathrooms)
• • Conductor Type: Single Ended
• • Cold Tail Length: 5m
• • Warranty: Life time warranty on heating mat, 3 years warranty on Thermostats
• • Glass thermostat is portrait or landscape installation
• • 6mm/10mm Thick Coated or Uncoated Insulation Board Available
