Elevate your home comfort with the ThermoGroup Thermonet 150-200W/m² Undertile/In Screed Floor Heating Kit, a system designed for both performance and modern convenience. This versatile kit offers two targeted solutions: the 150W/m² option for efficient undertile installation in large area and the 200W/m² version for in-screed applications where floor space is often limited like bathrooms. Available in a practical size range from 2m to 32m, it can be customized to fit any room layout. The mat itself is remarkably slim at just 3.5mm thick, ensuring easy integration into your floor build-up.

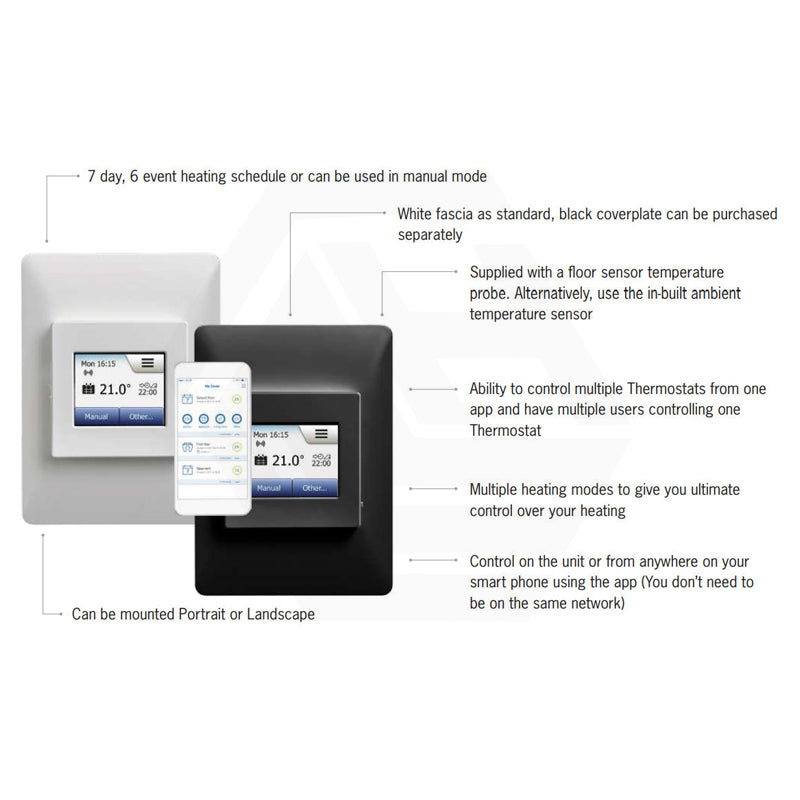

The true highlight of this kit is the smart Wi-Fi thermostat, which provides unparalleled control by allowing you to manage your heating system directly from your smartphone or the device itself. This smart feature, combined with a safe maximum temperature of 28°C and a completely waterproof IP68 rating, ensures durable and worry-free operation. Transform your space with the perfect blend of customizable warmth and intelligent, connected home comfort.
⚠️Please measure carefully — buying slightly less is better than buying too much. Excess heating mats cannot be cut, shortened, or overlapped.
Note:
• The thermostat supports up to 16 amps. If your system exceeds this, you’ll need a compatible contactor and snubber. Not sure which one to choose? Simply send us your floor plan, and our team will be happy to assist.
• Select the corresponding number of insulation board based on your thermonet size and coverage.
• NEVER CUT THE HEATING CABLE!
Specification:

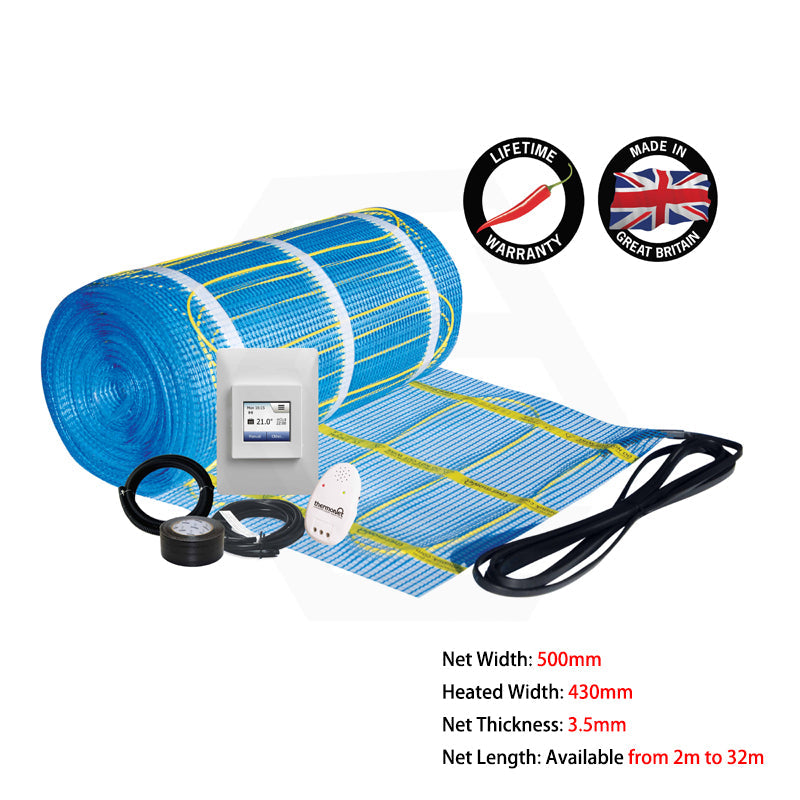

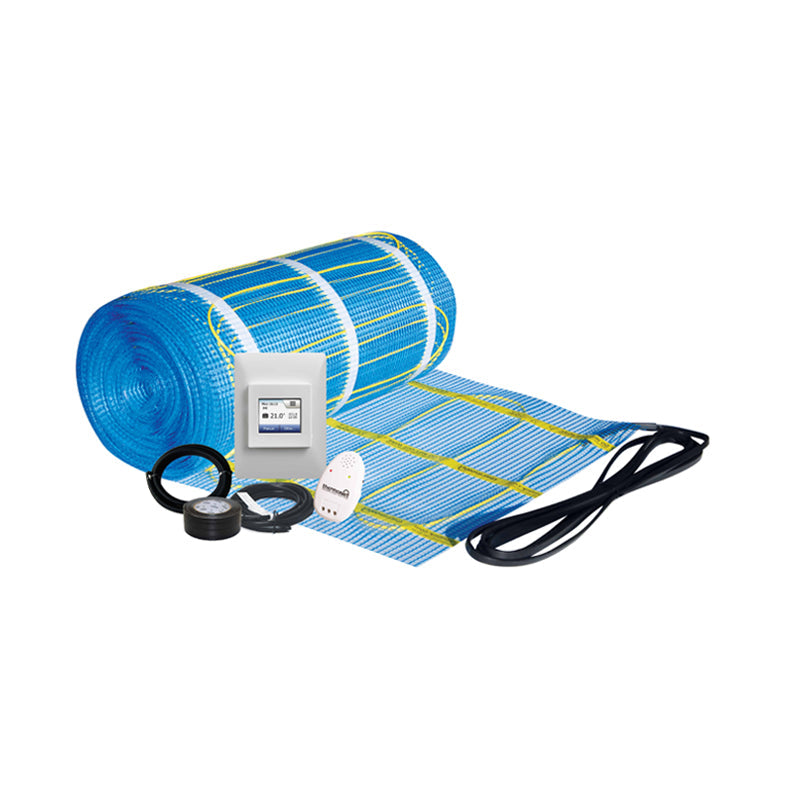

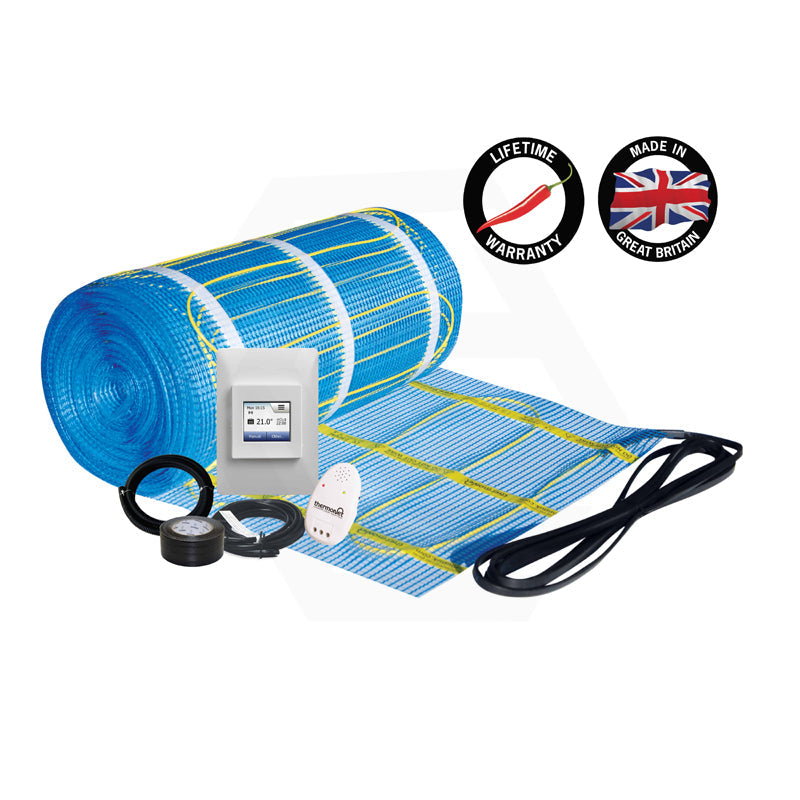

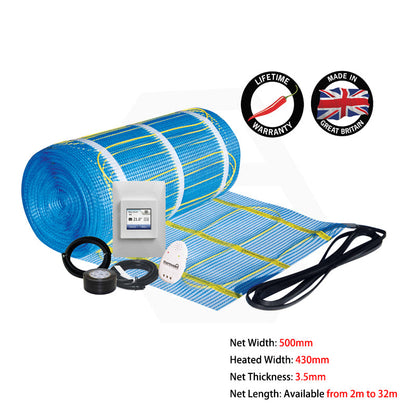

- The Thermonet matting is available in a kit which includes all the items (except insulation) that you will require for installation of your underfloor heating. Kit items include: Thermonet Mat, Programmable Thermostat (5235W), Floor Temperature Sensor, Sensor Conduit, Fixing Tape, Cable Monitor (6025) & Installation Guide & Warranty Form.
- 150W Thermonet:
- 200W Thermonet:
Technical Data:
• Width: 500mm
• Heated width: 430mm
• Thickness: 3.5mm
• Max.Temprature: 28℃
• Protection Rating: IP68
• Voltage: 240V
• Wattage: 150W/m² (Ideal for Living Rooms), 200W/m² (Ideal for Bathrooms)
• Conductor Type: Single Ended
• Cold Tail Length: 5m
• Life time warranty on heating mat, 3 years warranty on Thermostats
• 6mm/10mm Thick Coated or Uncoated Insulation Board Available
