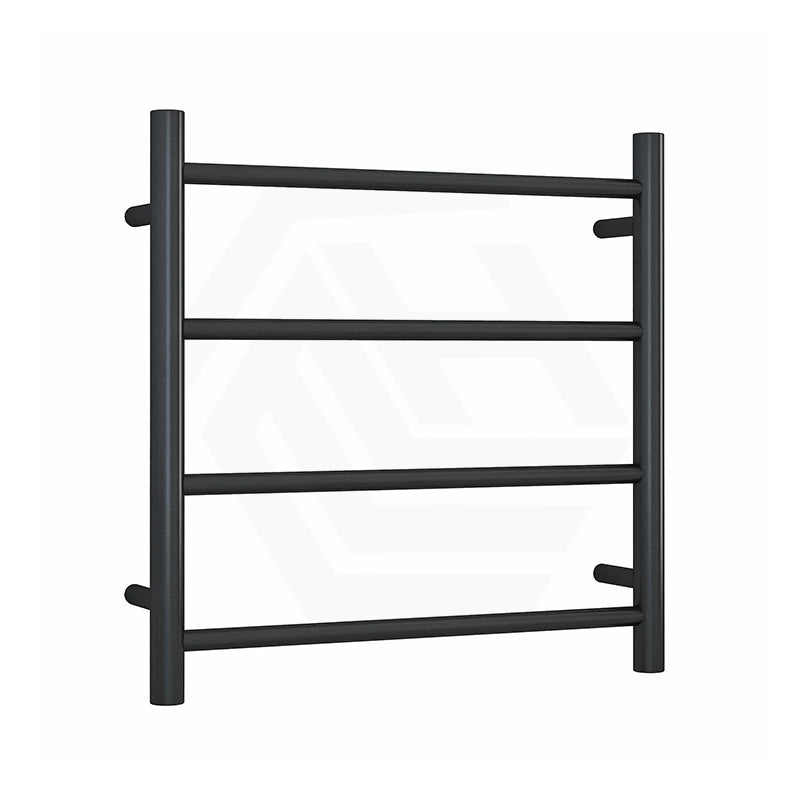

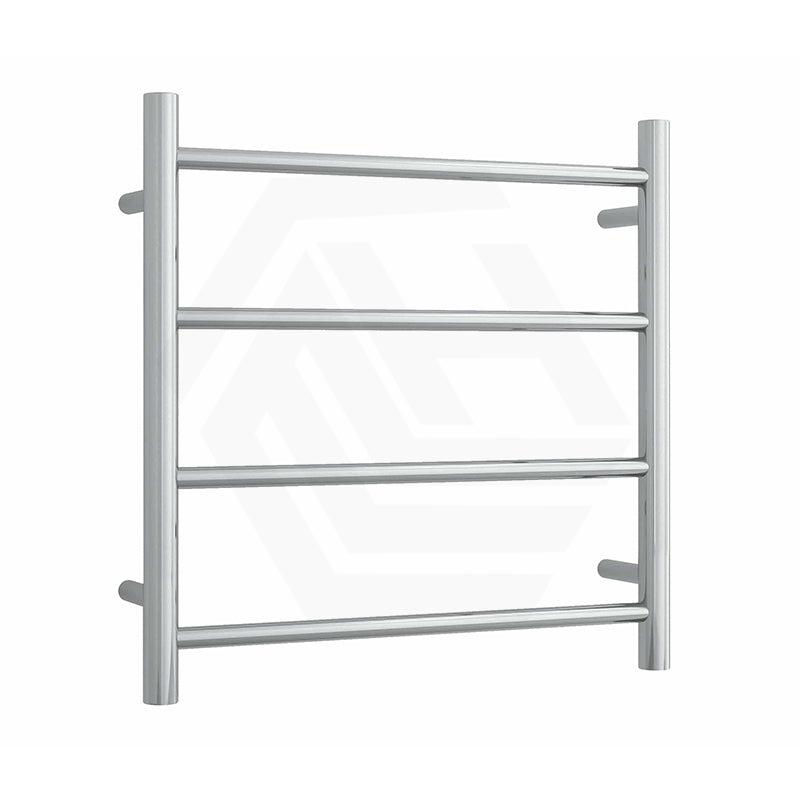

ThermoGroup 550x550x122mm 240V Straight Round Ladder Heated Towel Rail 4 Bars Polished Stainless Steel/Matt Black

Heated Towel Rails are an affordable luxury for every bathroom for warming and drying your towels. The Heated Towel Rail is a 550x550 4 bar ladder rail which features multiflex wiring. This smaller size rail is ideal for when only a small space is available in the room and for drying one towel.

The towel heater features multiflex wiring. This means that you have a connection point on the right or left hand side of the rail, this would be typically at the bottom but the rail can be flipped so that it is at the top and provides the option of hardwired or plugin, all as standard out of the box.

The electric towel rail is designed to rapidly heat up and reach a temperature of around 45-55 degrees. The rail can be operated using an on/off switch however we recommend using a timer to allow you to set and forget and control your running costs. As the rail is electric it is very energy efficient.

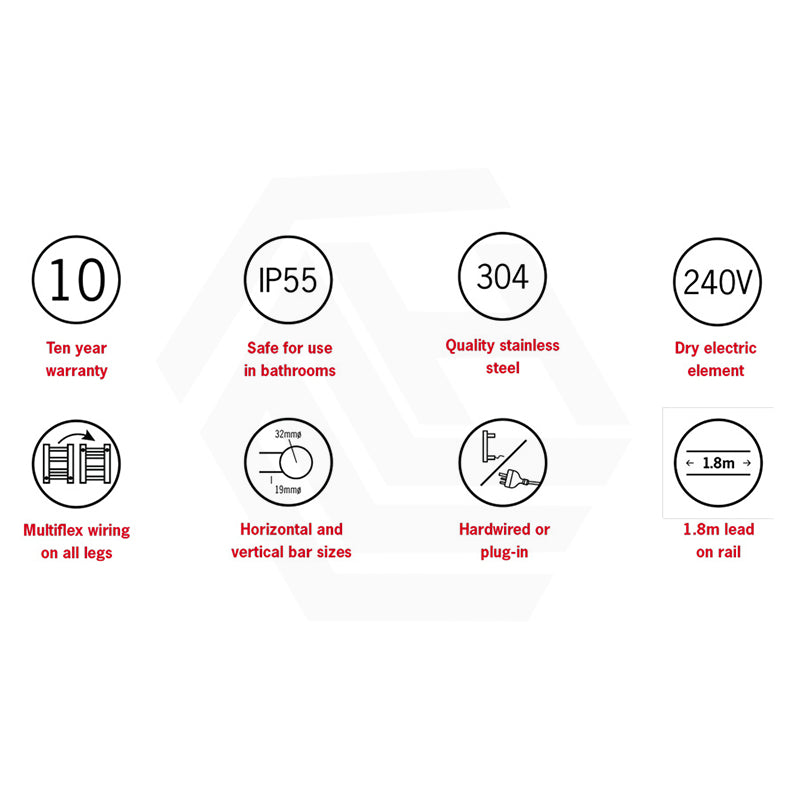

Technical Data

• - Finish: Polished Stainless Steel/ Matt Black

• - Output:
• 41Watts: TG-SR25M
• 54Watts: TG-SR25MB

• - IP Rating: IP55 (Safe for use in bathrooms)
• - Warranty:
• 10 Years: TG-SR25M
• 7 Years: TG-SR25MB

• - Lead Length: 1.8m
• - Voltage: 240Volt (Dry electric element)
• - No of Bars: 4
• - Wiring Type: Multiflex wiring on all legs - Concealed (hardwired) or exposed (plugin)
• - Wiring Position: Any of the four mounting positions

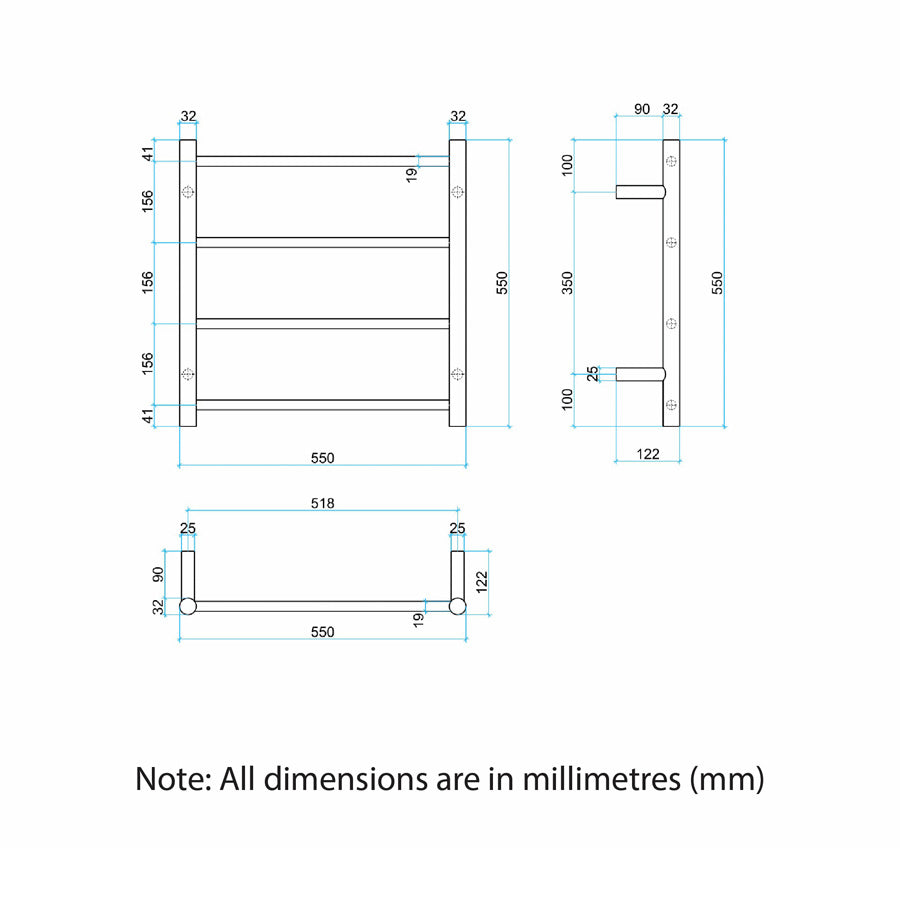

• - Size: W550 x H550 x D122mm
• - Distance Between Mounting Points (Top to Bottom): 350mm
• - Distance Between Mounting Points (Left to Right): 518mm
• - Quality 304 stainless steel
• - Horizontal bar sizes: 19mm∅
• - Vertical bar sizes: 32mm∅

Please read these instructions carefully and in full before installation.
Installation should be carried out by a qualified electrician.

*PLEASE NOTE: Specifications are for information purposes only. Whilst every effort has been made to ensure the product specifications are accurate, due to continuing product development and improvement the specifications are subject to change. Specifications can be used to rough in and fit timber supports in the wall however we recommend no holes are drilled without having the product on site or verifying the details with the manufacturer. Thermogroup cannot be held liable or responsible for errors due to updated specifications.
