ThermoGroup 600x800x122mm 12V Straight Round Ladder Heated Towel Rail 7 Bars Variant Colour Available

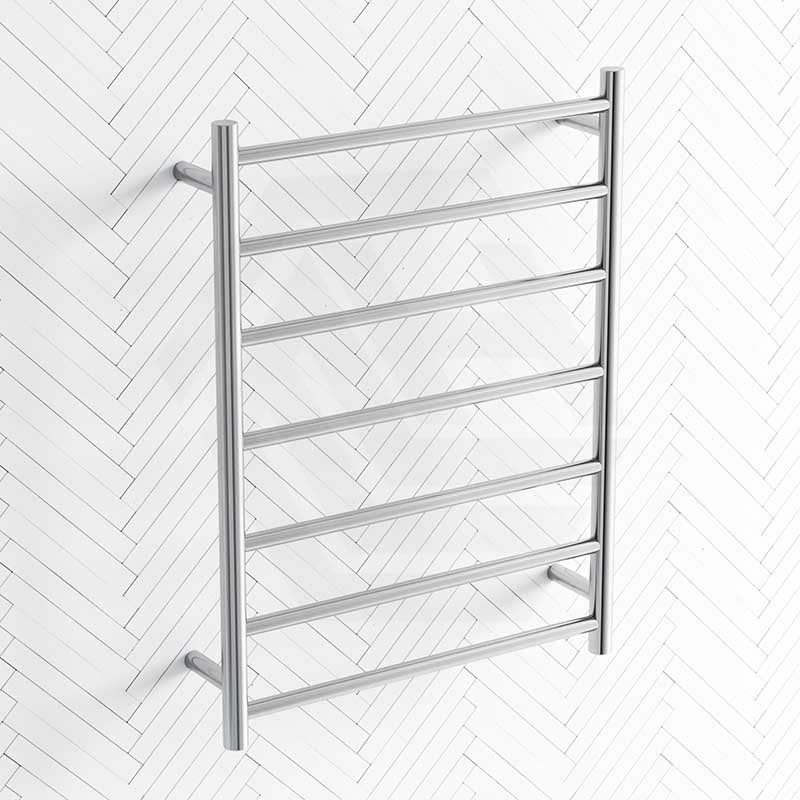

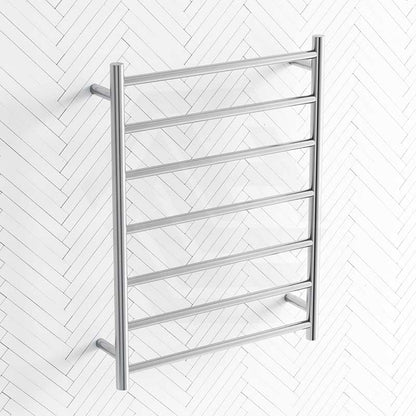

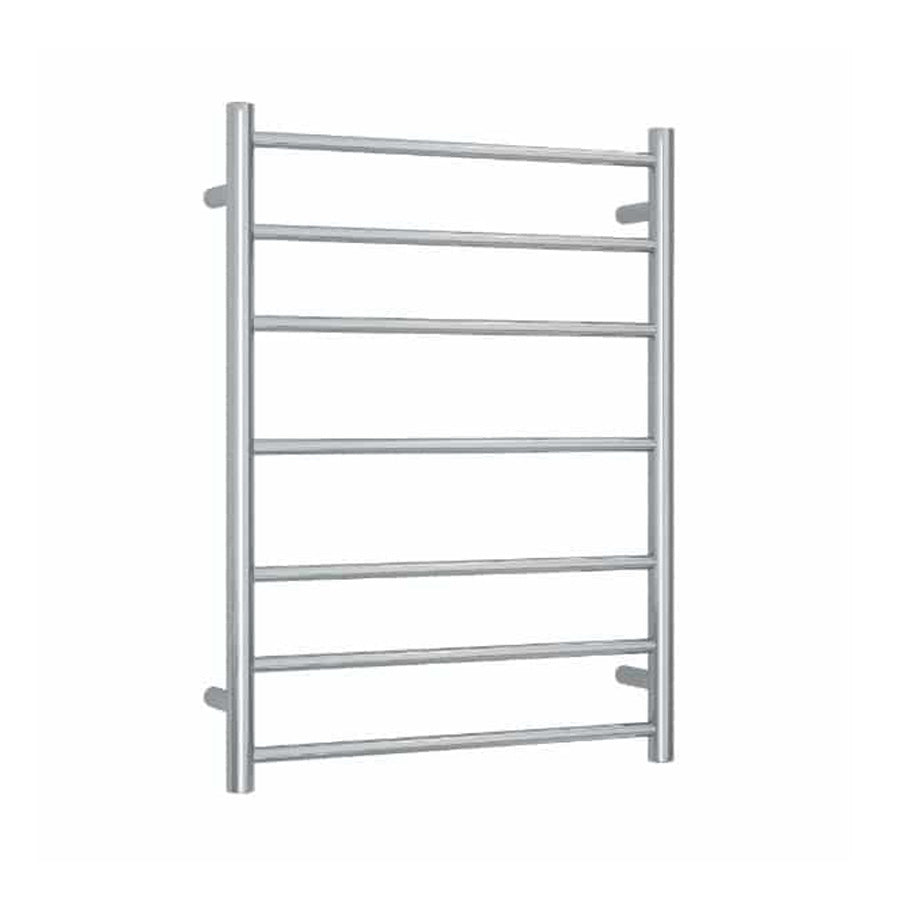

Heated Towel Rails are an affordable luxury for every bathroom for warming and drying your towels. The Heated Towel Rail is a 600x800 7 bar stainless steel ladder rail.

The electric towel dryer is a 12v unit, this means that it can be installed close to a wet area in the bathroom. The rail comes supplied with a transformer which reduces the incoming voltage from 240v to 12v. The rail will still operate at the same temperature and use the same amount of electricity as an equivalent 240v rail as the wattage is the same, however, the rail is operating at a lower voltage.

The rail has a wiring point on both the left and right-hand side of the rail and can be wired at either the top or bottom of the rail. As it is a 12v unit and needs to be wired to a transformer the rail can only be hardwired.

The electric towel rail is designed to rapidly heat up and reach a temperature of around 45-55 degrees. The rail can be operated using an on/off switch however we recommend using a timer to allow you to set and forget and control your running costs. As the rail is electric it is very energy efficient.

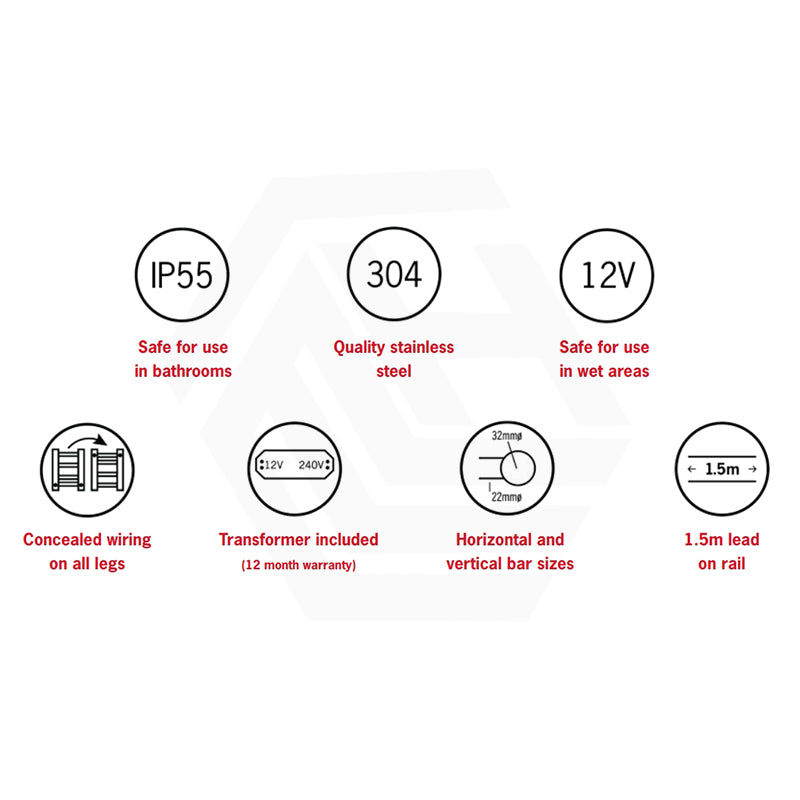

Technical Data

• - Finish:
• Polished Stainless Steel
• Matt Black
• Brushed Stainless Steel
• - Output:
• 90Watts: TG-SR4412/ TG-SRB4412
• 100Watts: TG-SR4412B

• - IP Rating: IP55 (Safe for use in bathrooms)
• - Warranty:
• 10 Years: TG-SR4412

• 7 Years: TG-SR4412B/ TG-SRB4412
• - Lead Length: 1.5m
• - Voltage: 12Volt (Safe for use in wet areas)
• - No of Bars: 7
• - Wiring Type: Concealed wiring on all legs (hardwired)
• - Wiring Position: Any of the four mounting positions

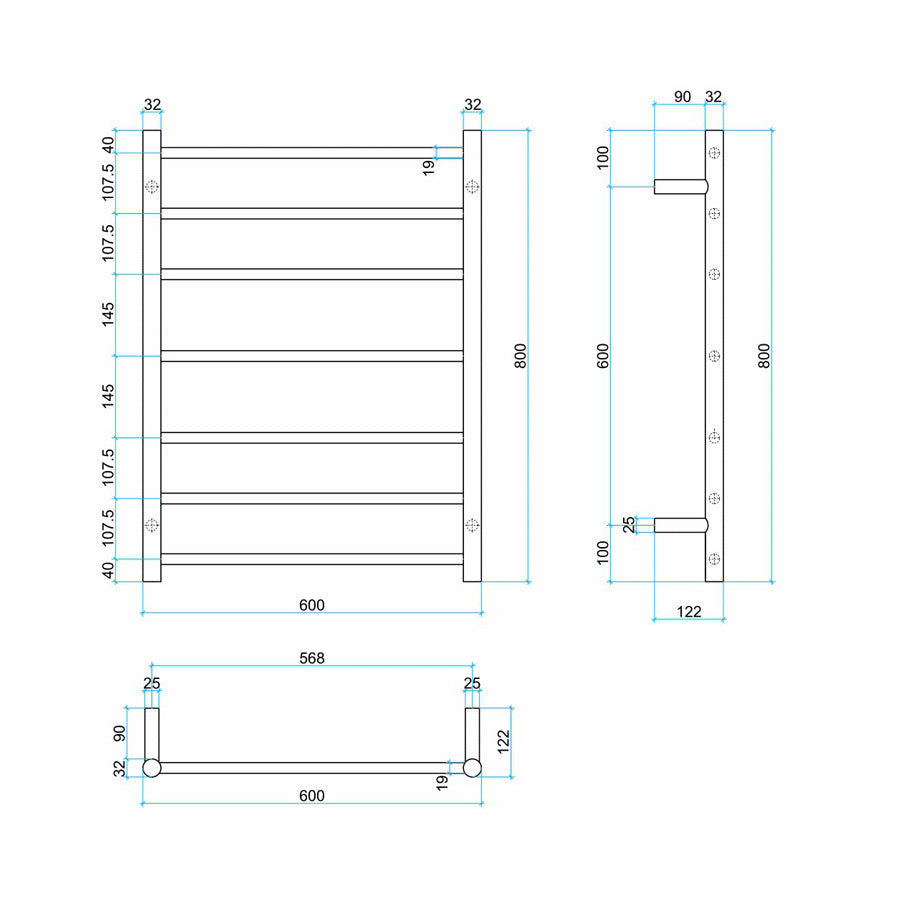

• - Distance Between Mounting Points (Top to Bottom): 600mm
• - Distance Between Mounting Points (Left to Right): 568mm
• - Size: W600 x H800 x D122mm
• - Quality 304 stainless steel
• - Transformer included (12 months warranty)

• - Horizontal bar sizes: 22mm∅
• - Vertical bar sizes: 32mm∅

Please read these instructions carefully and in full before installation.
Installation should be carried out by a qualified electrician.

*PLEASE NOTE: Specifications are for information purposes only. Whilst every effort has been made to ensure the product specifications are accurate, due to continuing product development and improvement the specifications are subject to change. Specifications can be used to rough in and fit timber supports in the wall however we recommend no holes are drilled without having the product on site or verifying the details with the manufacturer. Thermogroup cannot be held liable or responsible for errors due to updated specifications.
